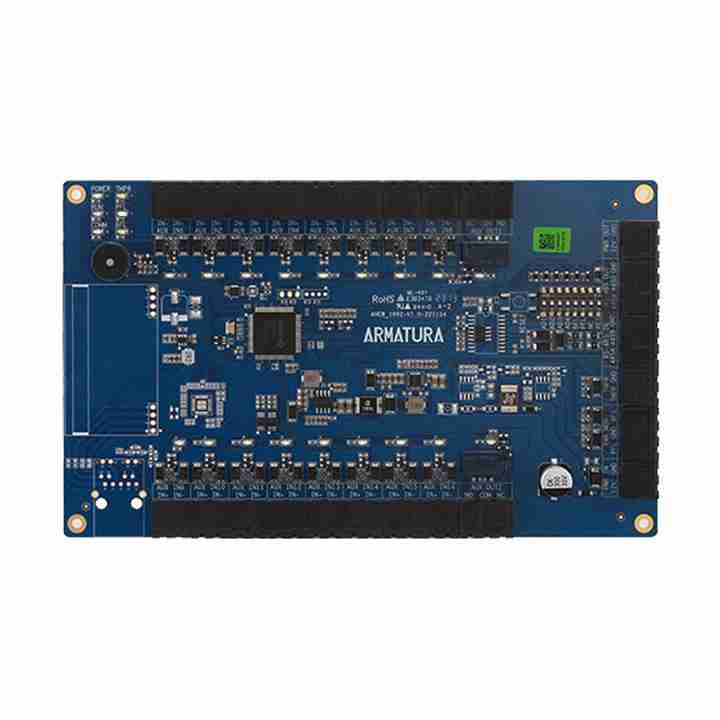

Features:
- 16 supervised inputs and 2 relay outputs
- Four-state supervision for circuit anomaly detection (5% tolerance)
- Supports normally open or closed contacts for enhanced system integrity
- RS-485 port for communication with AHSC-1000/AHDU series controllers
- RS-485 port for connecting additional AHEB boards (up to 792 boards per system)
- Input voltage range: 12-24V DC ±20%, maximum current: 550 mA
- Power detection, backup battery detection, and tamper input monitoring
- Compact size (7.6″ W x 4.6″ L x 0.7″ H) for easy installation
- Operating temperature: -20°C to +55°C (-4°F to +131°F)
- Humidity range: 0% to 95% RHNC
- Features wall mounting
Technical Specs:
- Certified OSDP communication and AES-128 encryption
- Compliant with CE, FCC, RoHS, and UL294 standards
- EAL6+ crypto chipset for data storage and encryption
- Compatible with Armatura One Security System and Cielo365 software (upcoming)
- Enables efficient monitoring and access control management
- Input circuit supervision for four states: Secure, Open, Short, and Tamper
- IP65-rated enclosure for protection against dust and water ingress
- Power detection and backup battery detection
- Tamper input monitoring for enhanced security
- Input circuit supervision with 5% resistor value tolerance
- Supports normally open or closed contacts for input supervision
