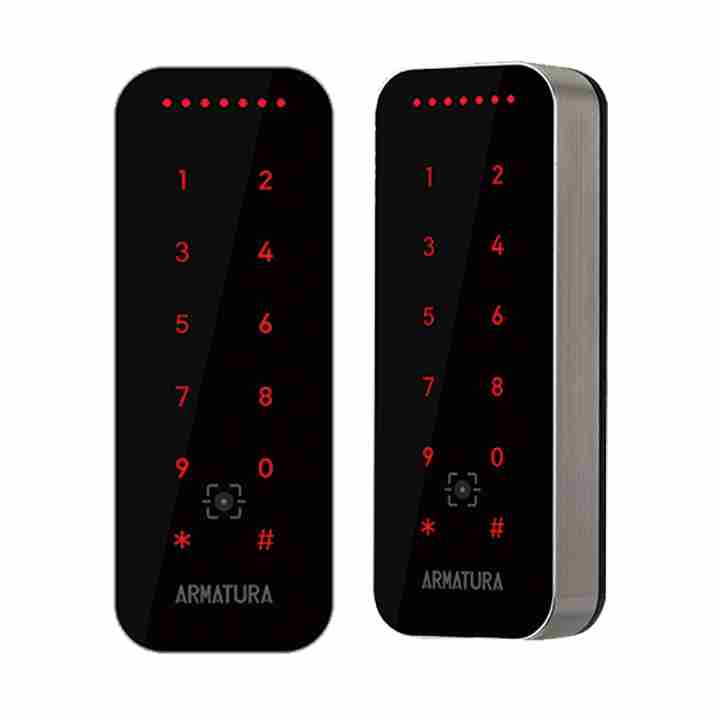

VG10CKQ – Smart Reader

Features:

• Supports over 100 RFID credential types, including mobile NFC and Bluetooth (Low Energy)
• Embedded touch keypad and QR code scanner for flexible authentication
• OSDP v2.2 secure channel over RS-485 with AES-128 encryption
• AES-256 encryption for mobile and reader-to-reader communication
• EAL6+ certification level encryption with protection against SPA/DPA/EMA/DEMA attacks
• IP66 water resistance and dust proofing, IK07 vandal-resistant certification
• Armatura ID app for mobile credential capabilities with Face & Touch ID authentication
• Stainless steel casing with tempered glass panel

Technical Specs:

• Mullion mounting design
• Dimension – 4.78″ W x 1.77″ H x 0.96″ D (121.5 x 45 x 24.5mm)
• Certifications – CE, FCC, RoHs3.0, WEEE
• Operating temperature: -40°C to 65°C (-40°F to 149°F)
• IP66 rated for water and dust resistance
• IK07 vandal-resistant certification
• RS-485 interface
• OSDP v2.2 secure channel support
• AES-128 encryption for reader-controller communication
• AES-256 encryption for mobile and reader-reader communication
• EAL6+ certified encryption chips
• Wiegand output interface
• Power supply: 12V DC
