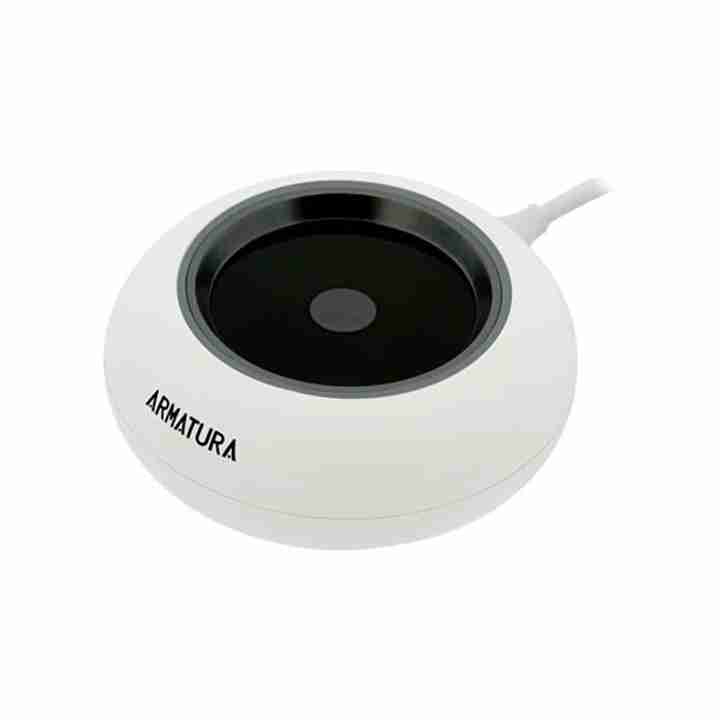

The AMT-PVR-10 is a cutting-edge Near-Infrared Light Palm Reader that provides a secure and convenient biometric authentication solution. This pioneering device incorporates the AMT-PVM-10 module, which is a single-lens Near-Infrared (NIR) light camera module designed to detect grayscale palm images produced by palm prints and subcutaneous palm vein patterns for highly accurate biometric recognition. AMT-PVR-10 is more privacy-friendly and user-acceptable compared to traditional face recognition technologies.


  • It captures unique lifelong unchangeable palm vein patterns having high-reliability anti-spoofing protection
  • Has an in-built distance sensor and auto-triggered Infrared LED for consistent, high-quality palm images under any lighting condition
  • Tri-coloured LED lights guide the positioning of palms and show the real-time status of the device’s operation
  • Wide field-of-view and HDR sensors offer a longer range for reading palms, which can be up to 15 inches accommodating different heights of users
  • Single 2-in-1 USB 2.0 cable used for data communication & power supply
  • 100% hands-free, hygienic & non-invasive user experience, making it perfect for preventing virus spread in public places
  • Portable with lightweight design along with USB 2.0 interface suitable for computer-based user authentication
  • Affordable biometric identification solution through Armatura PalmLite SDK software package offering cost-effectiveness

Technical Specs:

  • Interface: USB 2.0
  • Power Supply: DC 5.0V/400mA
  • Operating Temperature: -10°C ~ 55°C / 14°F ~ 131°F
  • Storage Temperature: -20°C to 80°C / -4°F ~ 176°F
  • Operating Humidity: 0 ~ 90% RH (No Condensation)
  • Indicator LED: Red, Green, Blue
  • Certification: CE, FCC, RoHS, WHQL
  • Sensor: 1/2.7″ HDR CMOS Sensor
  • Dynamic Range: 83 dB
  • Optical Wavelength:850 nm ±10 nm
  • Image Type:256 Grayscale Levels
  • Image Resolution :480W * 640H pixel
  • Default Output Format: MJPEG YUV422(1280*720@30fps)
  • Maximal Frame Rate:25 fps @ VGA
