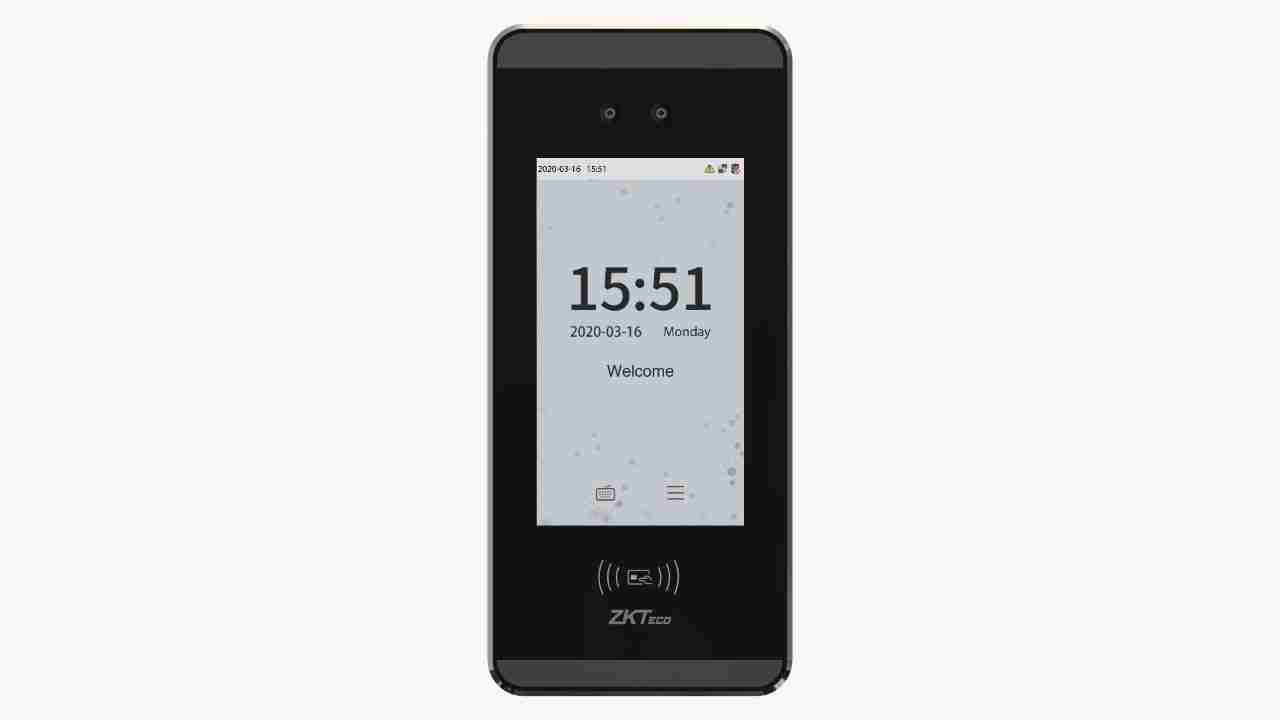

MiniAC Plus

The recognition distance has been greatly extended up to 2 meters long, which significantly improves maximum traffic rate. While most of algorithms only support 15-degree angle facial recognition, ZKTeco supports 30-degree angle facial recognition.


    • Visible Light Facial Recognition
    • Anti-spoofing algorithm against print attack(laser, color and B/W photos), videos attack and 3D mask attack
    • Multiple Verfications: Face / Palm / Card / Password
    • Multiple card modules: 125KHz ID card(EM) / 13.56MHz IC card (MF)
    • 3,000 face templates capacity


Display : 5-inch Touch Screen
Face Capacity : 3,000
Palm Capacity : 1,500 (Optional)
Card Capacity : 3,000
Transactions : 150,000
Operation System : Linux
Standard Functions : ID Card, ADMS, T9 Input, DST, Camera, 9 digit user ID, Acess Levels, Groups, Holidays,
Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes
Hardware :
900MHZ Dual Core CPU
Memory 512MB RAM / 8G ROM
2MP WDR Low Light Camera
Adjustable Light Brightness LED
Communication : TCP/IP, WIFI(Optional), Wiegand input/output
Access Control Interface : 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm output, Auxiliary Input
Optional Functions : 13.56MHz IC Card / WiFi
Face Recongntion Speed : ≤1s
Biometrics Algorithms : ZKFace VX5.8 / ZKPlam VX12.0
Power Supply : 12V 3A
Working Humidity : 10%-90%
Working Temperature : -10 °C- 45 °C
Dimensios (W*H*D) : 91.93*202.93*21.5mm
Supported Software : Easy TimePro, Intelligent Time, ZKBioSecurity
